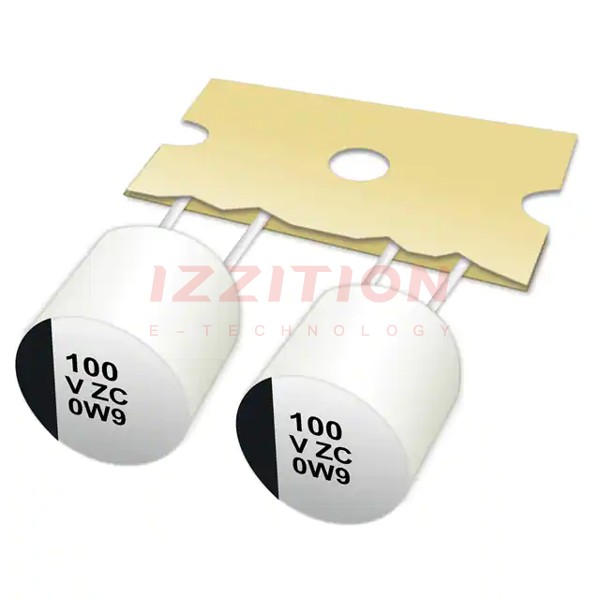

| Part Number | EEH-AZC1H101B | EEH-AZF1H101B | EEH-AZC1V101B | EEH-AZT1H101B | EEH-AZE1H101B | EEH-AZC1H121B | EEH-AZA1H101B |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Hybrid | Hybrid | Hybrid | Hybrid | Hybrid | Hybrid | Hybrid |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 120 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 35 V | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | 28mOhm | 28mOhm | 27mOhm | 23mOhm | 28mOhm | 28mOhm | 28mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C | 1000 Hrs @ 150°C | 4000 Hrs @ 125°C | 4000 Hrs @ 125°C | 2000 Hrs @ 145°C | 4000 Hrs @ 125°C | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 145°C | -55°C ~ 125°C | -55°C ~ 105°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Features | - | - | - | - | - | - | - |
| Ripple Current @ Low Frequency | 240 mA @ 100 Hz | 135 mA @ 100 Hz | 240 mA @ 100 Hz | 435 mA @ 100 Hz | 120 mA @ 100 Hz | 240 mA @ 100 Hz | 300 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz | 900 mA @ 100 kHz | 1.6 A @ 100 kHz | 2.9 A @ 100 kHz | 800 mA @ 100 kHz | 1.6 A @ 100 kHz | 2 A @ 100 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
