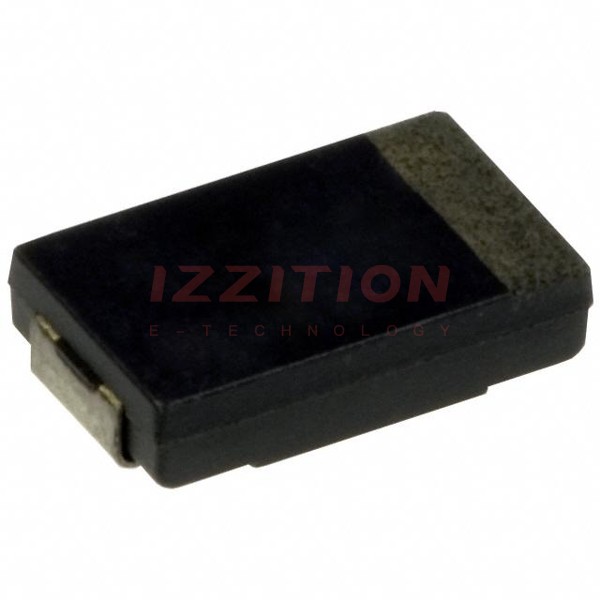

| Part Number | EEF-LL0D181R | EEF-SL0D181R |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Polymer | Polymer |
| Capacitance | 180 µF | 180 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 2 V | 2 V |
| ESR (Equivalent Series Resistance) | 18mOhm | 9mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | - | - |
| Ripple Current @ High Frequency | - | - |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.075" (1.90mm) | 0.071" (1.80mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) |
