EEF-HD0D221R
  • Share:

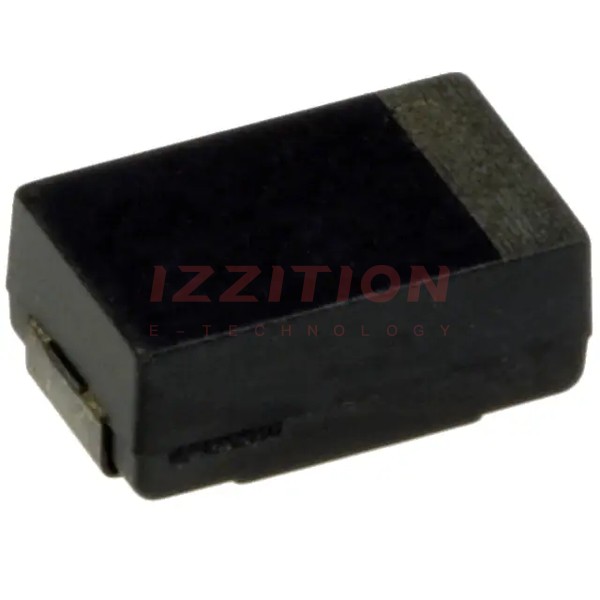

Panasonic Electronic Components EEF-HD0D221R

Manufacturer No:
EEF-HD0D221R
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
EEF-HD0D221R Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 220UF 20% 2V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:220 µF
Tolerance:±20%
Voltage - Rated:2 V
ESR (Equivalent Series Resistance):15mOhm
Lifetime @ Temp.:-
Operating Temperature:-40°C ~ 125°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:-
Ripple Current @ High Frequency:2.5 A @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max):0.118" (3.00mm)
Surface Mount Land Size:0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type:Surface Mount
Package / Case:2917 (7343 Metric)
0 Remaining View Similar

In Stock

$2.04
344

Please send RFQ , we will respond immediately.
