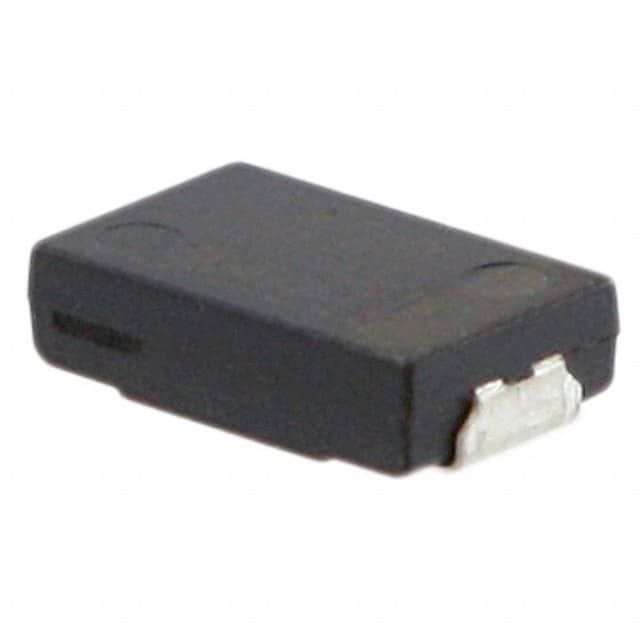

| Part Number | EEF-GX0D331R | EEF-LX0D331R | EEF-GX0E331R | EEF-CX0D331R |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 2 V | 2 V | 2.5 V | 2 V |
| ESR (Equivalent Series Resistance) | 3mOhm | 6mOhm | 3mOhm | 15mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - |
| Ripple Current @ Low Frequency | - | - | - | - |
| Ripple Current @ High Frequency | 10.2 A @ 100 kHz | 7.5 A @ 100 kHz | 10.2 A @ 100 kHz | 5.1 A @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.083" (2.10mm) | 0.079" (2.00mm) | 0.075" (1.90mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
