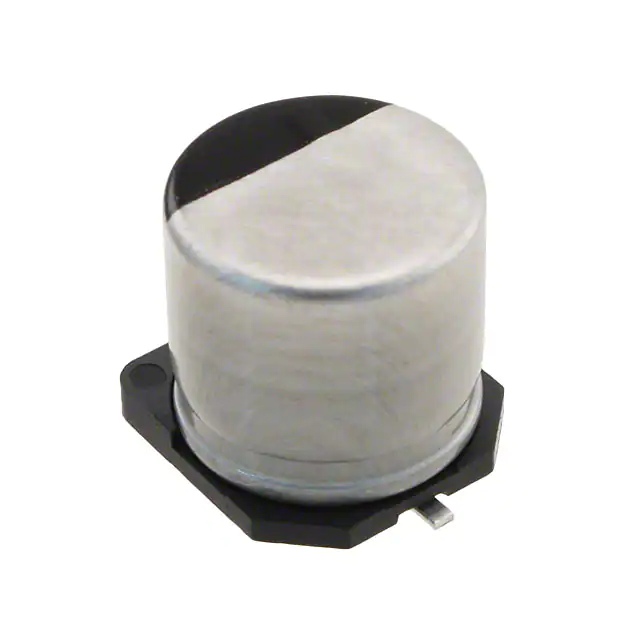

| Part Number | EEE-TP1K391M | EEE-TP1K391V |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 390 µF | 390 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 80 V | 80 V |
| ESR (Equivalent Series Resistance) | 100mOhm @ 100kHz | 100mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Polarization | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 1.425 A @ 120 Hz | 1.425 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz | 1.9 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
