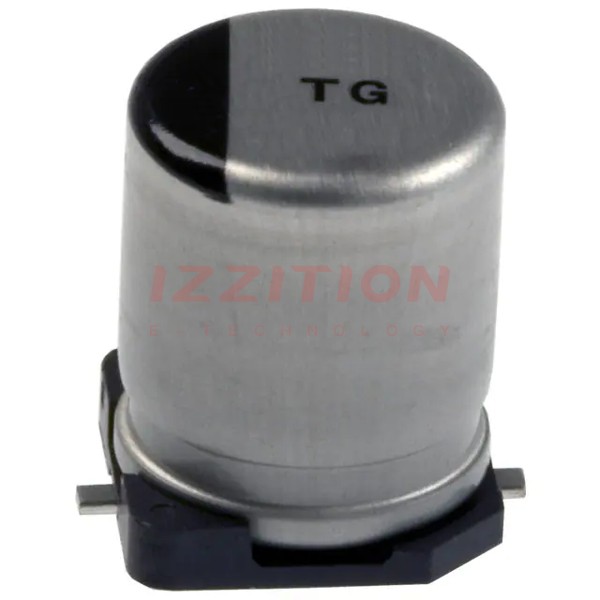

| Part Number | EEE-TG1C101P | EEE-TG1E101P | EEE-TG1V101P | EEE-TK1C101P | EEE-TC1C101P | EEE-TG1A101P |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 25 V | 35 V | 16 V | 16 V | 10 V |
| ESR (Equivalent Series Resistance) | 500mOhm @ 100kHz | 500mOhm @ 100kHz | 300mOhm @ 100kHz | 300mOhm @ 100kHz | 200mOhm @ 100kHz | 1Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 3000 Hrs @ 125°C | 3000 Hrs @ 125°C | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | General Purpose | Automotive, High Temperature Reflow | Automotive |
| Ripple Current @ Low Frequency | 128.1 mA @ 120 Hz | 128.1 mA @ 120 Hz | 175.5 mA @ 120 Hz | 195 mA @ 120 Hz | 266.5 mA @ 120 Hz | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 197 mA @ 100 kHz | 197 mA @ 100 kHz | 270 mA @ 100 kHz | 197 mA @ 100 kHz | 410 mA @ 100 kHz | 100 mA @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.413" (10.50mm) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
