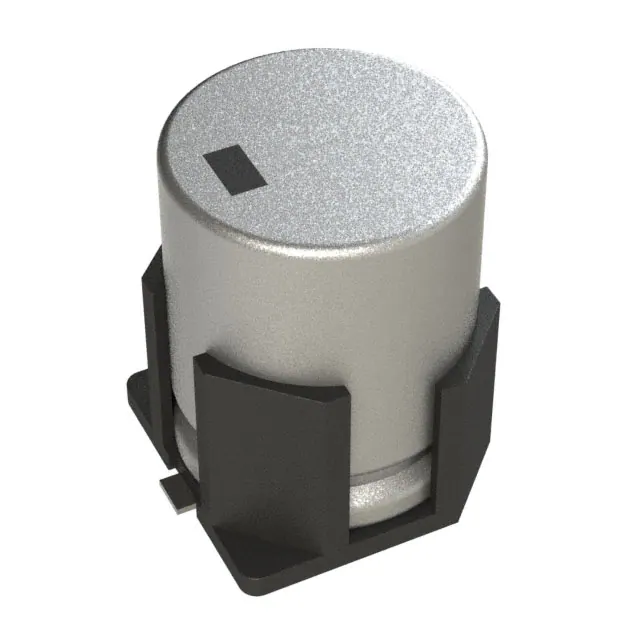

| Part Number | EEE-FT1E471AV | EEE-FT1E471GV | EEE-FT1E471AL | EEE-FT1E471AP |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 470 µF | 470 µF | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz | 80mOhm @ 100kHz | 80mOhm @ 100kHz | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow | Automotive, High Temperature Reflow | Automotive | Automotive |
| Ripple Current @ Low Frequency | 552.5 mA @ 120 Hz | 552.5 mA @ 120 Hz | 552.5 mA @ 120 Hz | 552.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz | 850 mA @ 100 kHz | 850 mA @ 100 kHz | 850 mA @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) | 0.425" (10.80mm) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
