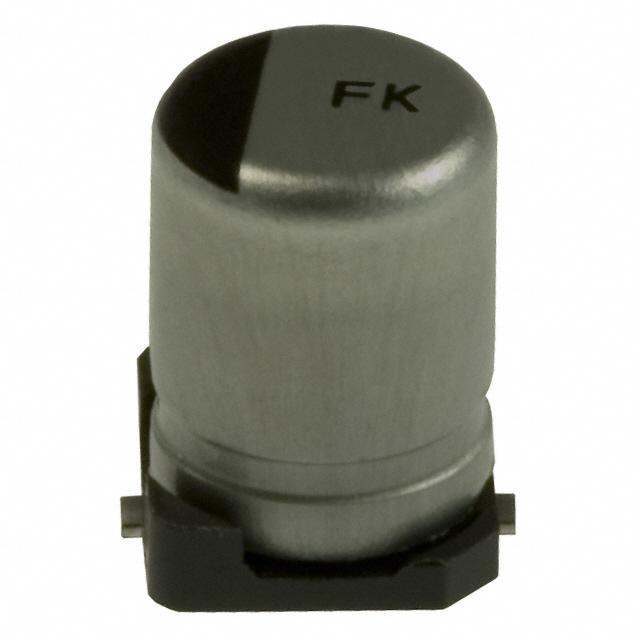

| Part Number | EEE-FKA330UAR | EEE-FKE330UAR |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 10 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 58.5 mA @ 120 Hz | 104 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz | 160 mA @ 100 kHz |
| Impedance | 1.35 Ohms | 700 mOhms |
| Lead Spacing | - | - |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
