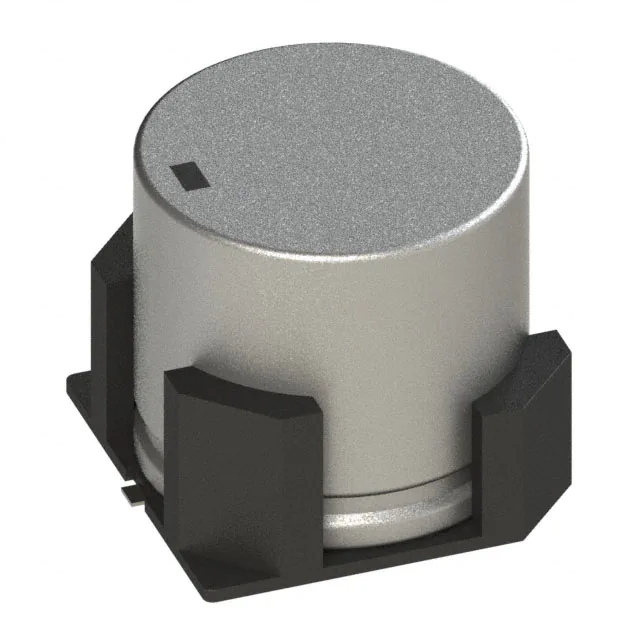

| Part Number | EEE-FK2A221AV | EEE-FK2A221AM |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | 153mOhm @ 100kHz | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 687.75 mA @ 120 Hz | 687.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 917 mA @ 100 kHz | 917 mA @ 100 kHz |
| Impedance | - | 153 mOhms |
| Lead Spacing | - | - |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.673" (17.10mm) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
