Please send RFQ , we will respond immediately.

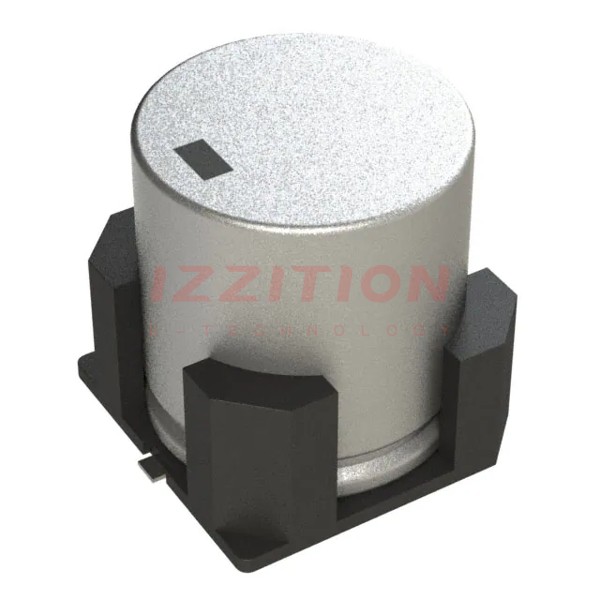

| Part Number | EEE-FK0J332AV | EEE-FK0J331AV | EEE-FK0J332AQ |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 3300 µF | 330 µF | 3300 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz | 260mOhm @ 100kHz | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow | Automotive, High Temperature Reflow | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 825 mA @ 120 Hz | 195 mA @ 120 Hz | 825 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz | 300 mA @ 100 kHz | 1.1 A @ 100 kHz |
| Impedance | - | - | 60 mOhms |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.315" Dia (8.00mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.555" (14.10mm) | 0.268" (6.80mm) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
