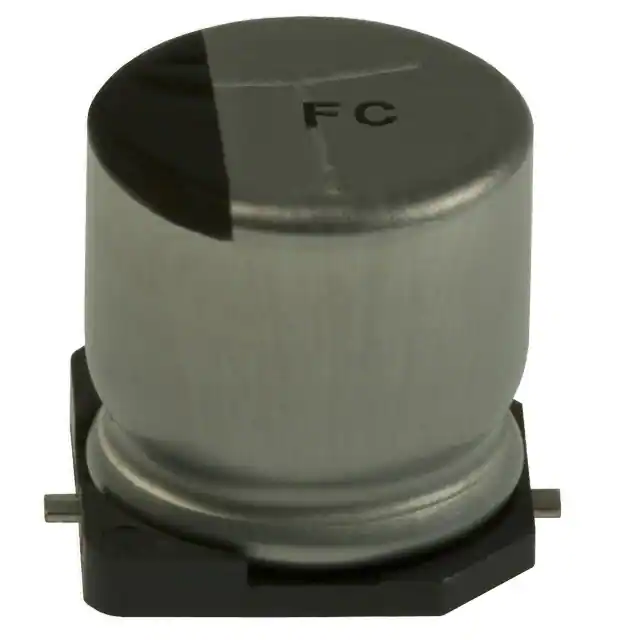

| Part Number | EEE-FC1C331P | EEE-FC1V331P | EEE-FC1E331P | EEE-FC1C331AP |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 35 V | 25 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 502.5 mA @ 120 Hz | 502.5 mA @ 120 Hz | 502.5 mA @ 120 Hz | 502.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz | 670 mA @ 100 kHz | 670 mA @ 100 kHz | 670 mA @ 100 kHz |
| Impedance | 150 mOhms | 150 mOhms | 150 mOhms | 150 mOhms |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
