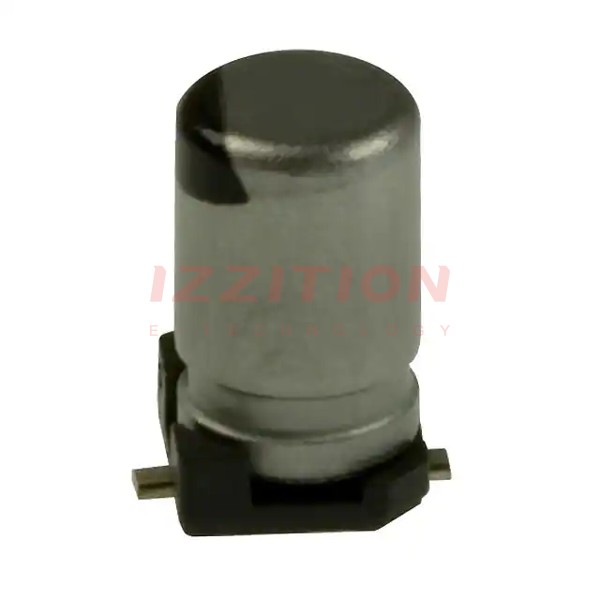

| Part Number | EEE-1HSR22SR | EEE-1HAR22SR |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Capacitance | 0.22 µF | 0.22 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive |
| Ripple Current @ Low Frequency | 2 mA @ 120 Hz | 2 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.4 mA @ 10 kHz | 3.4 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.118" Dia (3.00mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
