EEE-1EA100NP
  • Share:

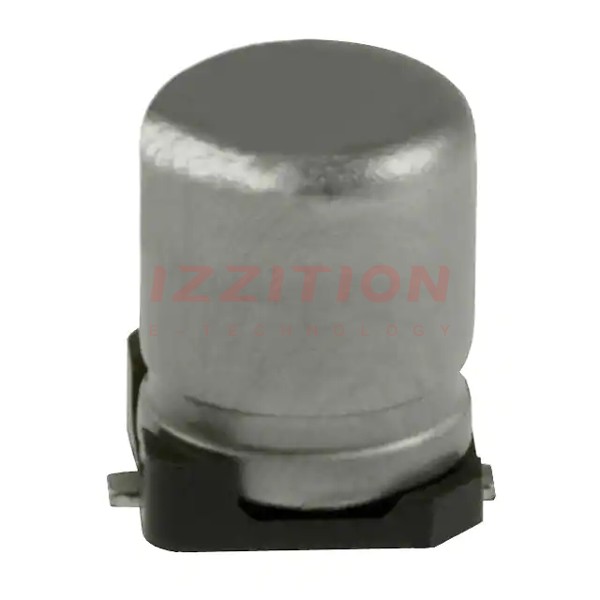

Panasonic Electronic Components EEE-1EA100NP

Manufacturer No:
EEE-1EA100NP
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
EEE-1EA100NP Datasheet
ECAD Model:
-
Description:
CAP ALUM 10UF 20% 25V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:10 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:2000 Hrs @ 85°C
Operating Temperature:-40°C ~ 85°C
Polarization:Bi-Polar
Ratings:AEC-Q200
Applications:Automotive
Ripple Current @ Low Frequency:28 mA @ 120 Hz
Ripple Current @ High Frequency:47.6 mA @ 10 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.248" Dia (6.30mm)
Height - Seated (Max):0.213" (5.40mm)
Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

$0.53
622

Please send RFQ , we will respond immediately.
