Please send RFQ , we will respond immediately.

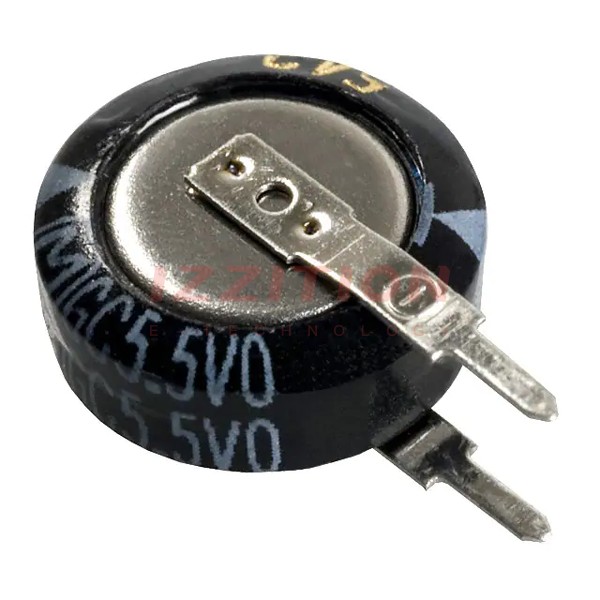

| Part Number | EEC-S0HD224V | EEC-S0HD224VN | EEC-S0HD223V | EEC-S0HD224H |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 220 mF | 220 mF | 22 mF | 220 mF |
| Tolerance | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% |
| Voltage - Rated | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| ESR (Equivalent Series Resistance) | 75Ohm @ 1kHz | 75Ohm @ 1kHz | 150Ohm @ 1kHz | 75Ohm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can - Vertical | Axial, Can - Vertical | Axial, Can - Vertical | Axial, Can - Horizontal |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.413" Dia (10.50mm) | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.413" Dia (10.50mm) | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.453" (11.50mm) | 0.453" (11.50mm) | 0.236" (6.00mm) |
| Operating Temperature | -25°C ~ 70°C | -40°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
