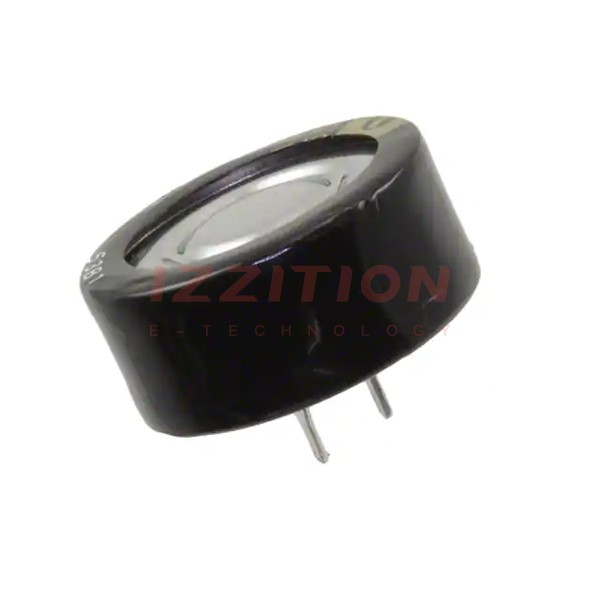

| Part Number | EEC-RF0H105 | EEC-RF0H105N | EEC-LF0H105 | EEC-RF0H104 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1 F | 1 F | 1 F | 100 mF |
| Tolerance | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% |
| Voltage - Rated | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| ESR (Equivalent Series Resistance) | 40Ohm | 40Ohm | 20Ohm @ 1kHz | 40Ohm |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 6000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial, Can | Radial, Can |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.846" Dia (21.50mm) | 0.846" Dia (21.50mm) | 0.846" Dia (21.50mm) | 0.531" Dia (13.50mm) |
| Height - Seated (Max) | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) |
| Operating Temperature | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C |
