Please send RFQ , we will respond immediately.

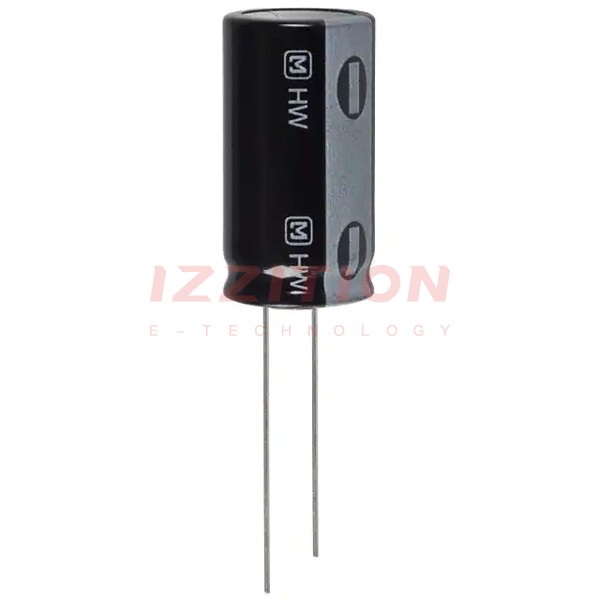

| Part Number | EEC-HW0D506 | EEC-HW0D706 | EEC-HW0D106 | EEC-HW0D306 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 50 F | 70 F | 10 F | 30 F |
| Tolerance | -20%, +40% | -20%, +40% | -20%, +40% | -20%, +40% |
| Voltage - Rated | 2.3 V | 2.1 V | 2.3 V | 2.3 V |
| ESR (Equivalent Series Resistance) | 100mOhm @ 1kHz | 100mOhm @ 1kHz | 200mOhm @ 1kHz | 100mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 60°C | 1000 Hrs @ 60°C | 1000 Hrs @ 70°C | 1000 Hrs @ 60°C |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) | 2.047" (52.00mm) | 1.457" (37.00mm) | 1.457" (37.00mm) |
| Operating Temperature | -25°C ~ 60°C | -25°C ~ 60°C | -25°C ~ 70°C | -25°C ~ 60°C |
