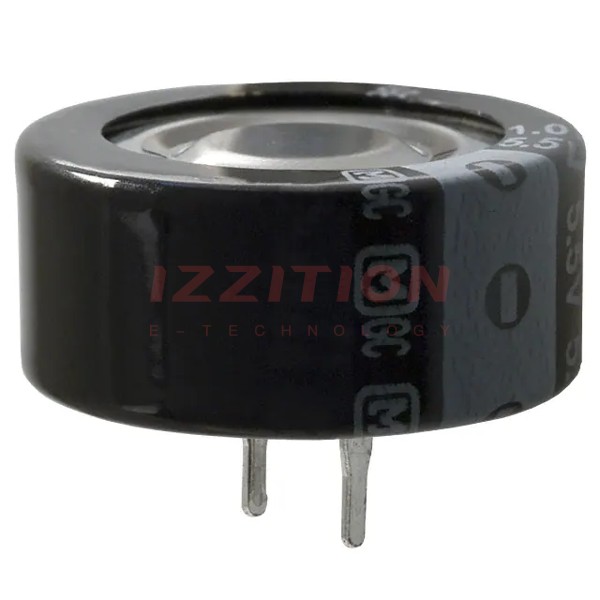

| Part Number | EEC-F5R5H105 | EEC-F5R5U105 | EEC-S5R5H105 | EEC-F5R5H105N | EEC-F5R5H104 |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1 F | 1 F | 1 F | 1 F | 100 mF |
| Tolerance | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% |
| Voltage - Rated | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| ESR (Equivalent Series Resistance) | 50Ohm @ 1kHz | 30Ohm @ 1kHz | 30Ohm @ 1kHz | 50Ohm @ 1kHz | 100Ohm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Axial, Can - Horizontal | Radial | Radial, Can |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.846" Dia (21.50mm) | 0.846" Dia (21.50mm) | 0.748" Dia (19.00mm) | 0.846" Dia (21.50mm) | 0.531" Dia (13.50mm) |
| Height - Seated (Max) | 0.374" (9.50mm) | 0.315" (8.00mm) | 0.256" (6.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 70°C | -25°C ~ 70°C | -40°C ~ 85°C | -25°C ~ 85°C |
