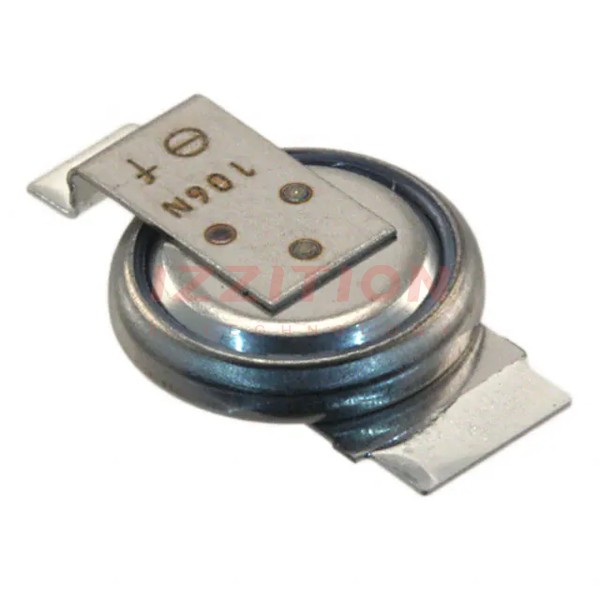

| Part Number | EEC-EN0F204AK | EEC-EN0F204RK | EEC-EN0F204A |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 200 mF | 200 mF | 200 mF |
| Tolerance | -20%, +80% | -20%, +80% | -20%, +80% |
| Voltage - Rated | 3.3 V | 3.3 V | 3.3 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 1kHz | 200mOhm @ 1kHz | 200mOhm @ 1kHz |
| Lifetime @ Temp. | 500 Hrs @ 60°C | 500 Hrs @ 60°C | 500 Hrs @ 60°C |
| Termination | SMD (SMT) Tabs | SMD (SMT) Tabs | SMD (SMT) Tabs |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Coin, Wide Terminals - Opposite Sides | Coin, Wide Terminals - Opposite Sides | Coin, Wide Terminals - Opposite Sides |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.268" Dia (6.80mm) | 0.268" Dia (6.80mm) | 0.268" Dia (6.80mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.073" (1.85mm) |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C | -10°C ~ 60°C |
