Please send RFQ , we will respond immediately.

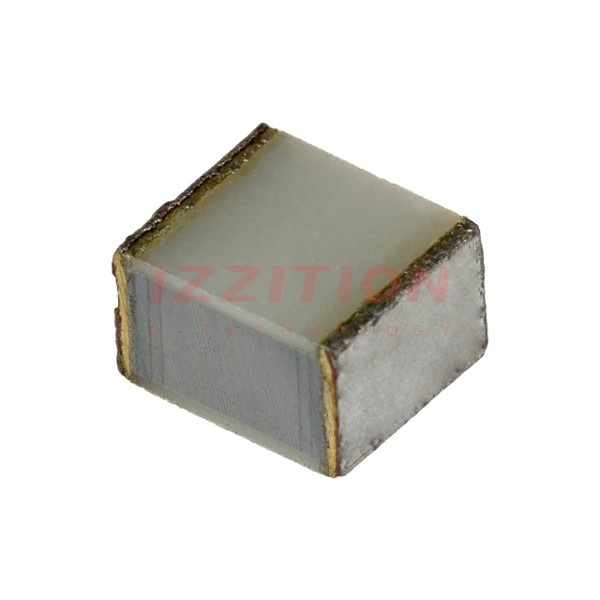

| Part Number | ECW-U4563V17 | ECW-U4562V17 |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 0.056 µF | 5600 pF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 157V | 157V |
| Voltage Rating - DC | 400V | 400V |
| Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2825 (7163 Metric) | 1913 (4833 Metric) |
| Size / Dimension | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.189" L x 0.130" W (4.80mm x 3.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.079" (2.00mm) |
| Termination | Solder Pads | Solder Pads |
| Lead Spacing | - | - |
| Applications | DC Link, DC Filtering | DC Link, DC Filtering |
| Ratings | - | - |
| Features | - | - |
