Please send RFQ , we will respond immediately.

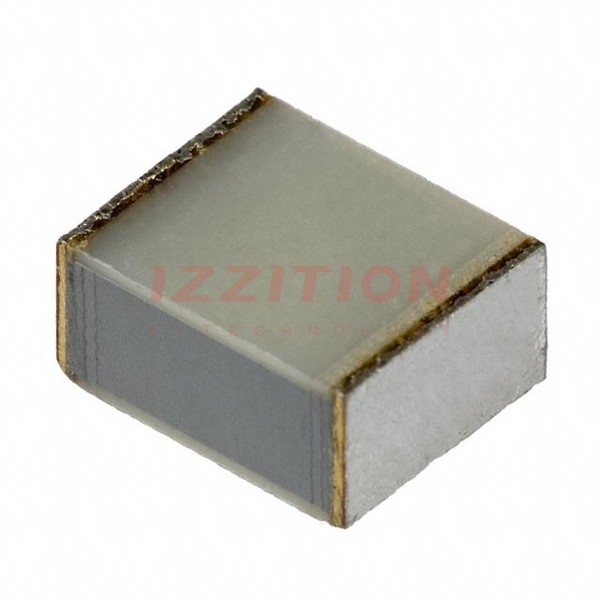

| Part Number | ECW-U4124V17 | ECW-U4154V17 | ECW-U4104V17 | ECW-U4122V17 | ECW-U4123V17 |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.12 µF | 0.15 µF | 0.1 µF | 1200 pF | 0.012 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | 157V | 157V | - | 157V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3931 (9880 Metric) | 3931 (9880 Metric) | 3925 (9863 Metric) | 1913 (4833 Metric) | 2416 (6041 Metric) |
| Size / Dimension | 0.386" L x 0.315" W (9.80mm x 8.00mm) | 0.386" L x 0.315" W (9.80mm x 8.00mm) | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.236" L x 0.161" W (6.00mm x 4.10mm) |
| Height - Seated (Max) | 0.165" (4.20mm) | 0.197" (5.00mm) | 0.173" (4.40mm) | 0.063" (1.60mm) | 0.110" (2.79mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - | - | - |
| Applications | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
