Please send RFQ , we will respond immediately.

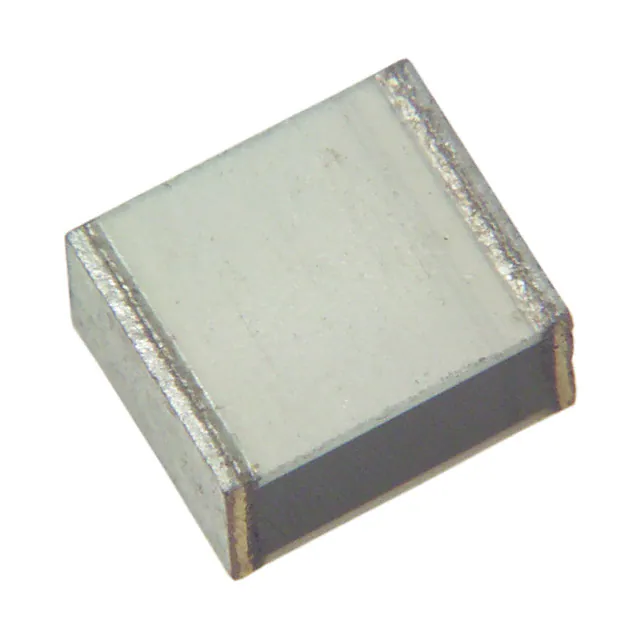

| Part Number | ECW-U2823KC9 | ECW-U2123KC9 | ECW-U2223KC9 | ECW-U2822KC9 | ECW-U2823JC9 |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.082 µF | 0.012 µF | 0.022 µF | 8200 pF | 0.082 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 125V | 125V | 125V | - | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2420 (6050 Metric) | 1913 (4833 Metric) | 1913 (4833 Metric) | 1913 (4833 Metric) | 2420 (6050 Metric) |
| Size / Dimension | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.236" L x 0.197" W (6.00mm x 5.00mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.063" (1.60mm) | 0.087" (2.20mm) | 0.063" (1.60mm) | 0.134" (3.40mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
