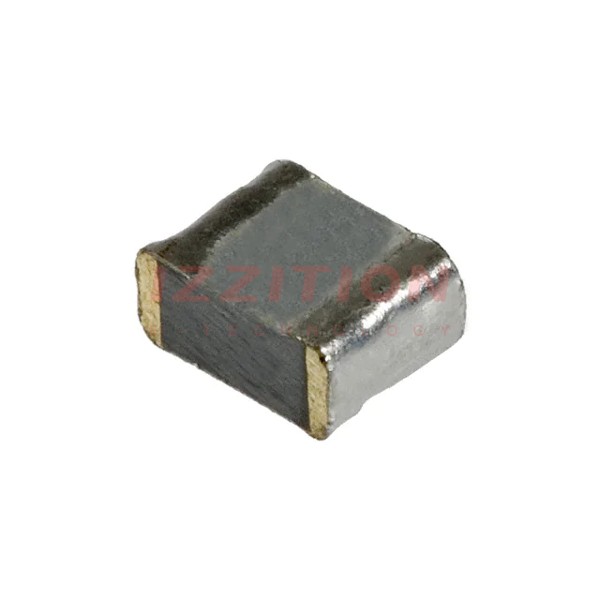

| Part Number | ECW-U1H333JB5 | ECW-U1H393JB5 | ECW-U1H332JB5 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.033 µF | 0.039 µF | 3300 pF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V |
| Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.039" (1.00mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
