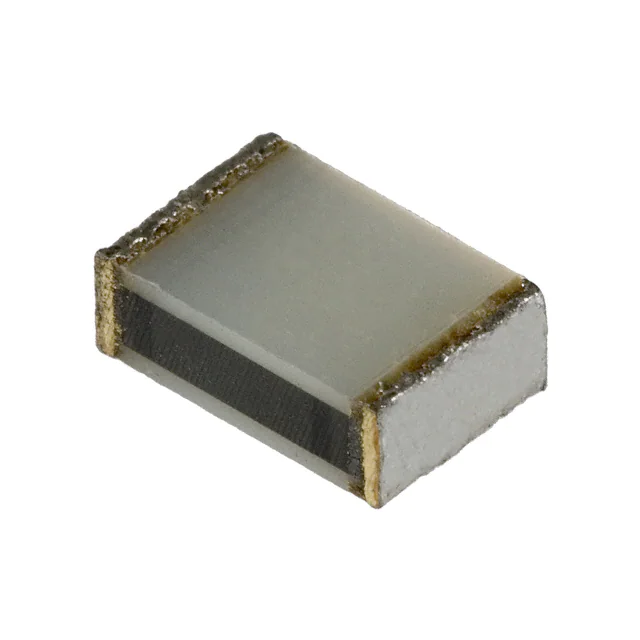

| Part Number | ECW-U1C394JC9 | ECW-U1C334JC9 | ECW-U1C394JB9 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Obsolete |
| Capacitance | 0.39 µF | 0.33 µF | 0.39 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 8V | 8V | - |
| Voltage Rating - DC | 16V | 16V | 16V |
| Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2416 (6041 Metric) | 2416 (6041 Metric) | 2416 (6041 Metric) |
| Size / Dimension | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.236" L x 0.161" W (6.00mm x 4.10mm) |
| Height - Seated (Max) | 0.102" (2.60mm) | 0.087" (2.20mm) | 0.102" (2.60mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
