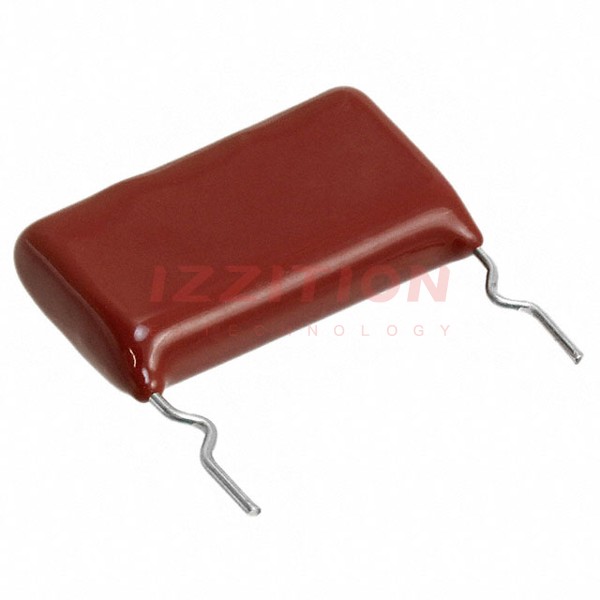

| Part Number | ECW-HC3F822JQ | ECW-HC3F822J | ECW-HC3F822JD |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 8200 pF | 8200 pF | 8200 pF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 1060V (1.06kV) | 1060V (1.06kV) | 1060V (1.06kV) |
| Voltage Rating - DC | 3000V (3kV) | 3000V (3kV) | 3000V (3kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.016" L x 0.295" W (25.80mm x 7.50mm) | 1.016" L x 0.295" W (25.80mm x 7.50mm) | 1.016" L x 0.295" W (25.80mm x 7.50mm) |
| Height - Seated (Max) | 0.878" (22.30mm) | 0.602" (15.30mm) | 0.602" (15.30mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
