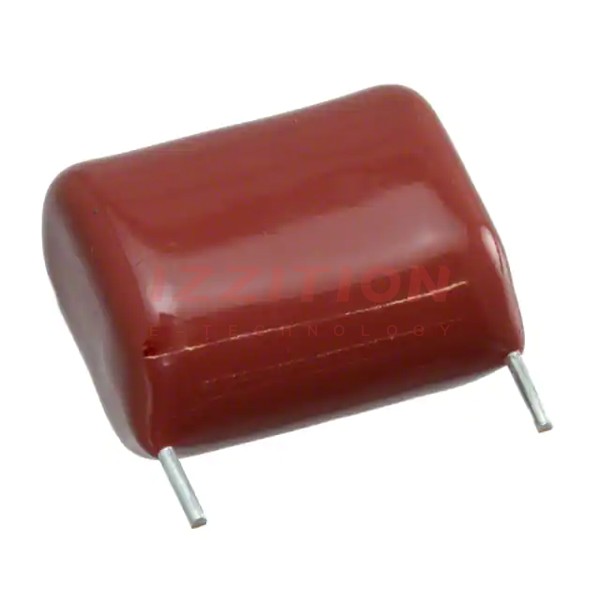

| Part Number | ECW-HC3B114JA | ECW-HC3B124JA | ECW-HC3B104JA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 0.11 µF | 0.12 µF | 0.1 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 450V | 450V | 450V |
| Voltage Rating - DC | 1250V (1.25kV) | 1250V (1.25kV) | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.815" L x 0.559" W (20.70mm x 14.20mm) | 0.815" L x 0.587" W (20.70mm x 14.90mm) | 0.815" L x 0.531" W (20.70mm x 13.50mm) |
| Height - Seated (Max) | 0.898" (22.80mm) | 0.921" (23.40mm) | 0.811" (20.60mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
