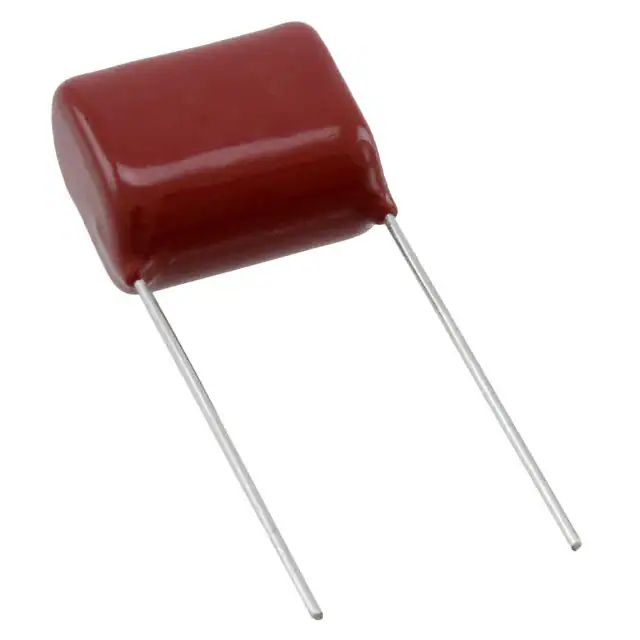

| Part Number | ECW-HA3C473JB | ECW-HA3C473JQ | ECW-HA3C473J | ECW-HA3C473J4 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.047 µF | 0.047 µF | 0.047 µF | 0.047 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | 700V | - |
| Voltage Rating - DC | 1600V (1.6kV) | 1600V (1.6kV) | 1600V (1.6kV) | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.811" L x 0.528" W (20.60mm x 13.40mm) | 0.811" L x 0.528" W (20.60mm x 13.40mm) | 0.811" L x 0.528" W (20.60mm x 13.40mm) | 0.811" L x 0.528" W (20.60mm x 13.40mm) |
| Height - Seated (Max) | 0.953" (24.20mm) | 1.032" (26.20mm) | 0.756" (19.20mm) | 0.756" (19.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
