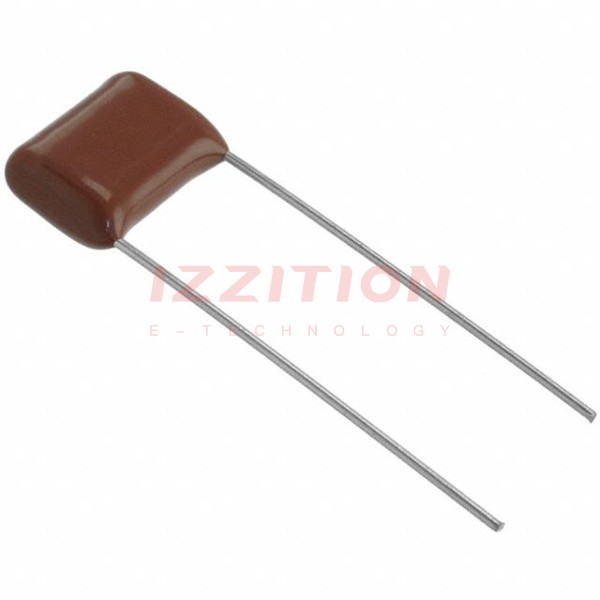

| Part Number | ECW-H8223HA | ECW-H8273HA | ECW-H8123HA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 0.022 µF | 0.027 µF | 0.012 µF |
| Tolerance | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 283V | 283V | 283V |
| Voltage Rating - DC | 800V | 800V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.618" L x 0.280" W (15.70mm x 7.10mm) | 0.618" L x 0.299" W (15.70mm x 7.60mm) | 0.606" L x 0.228" W (15.40mm x 5.80mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.532" (13.50mm) | 0.461" (11.70mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
