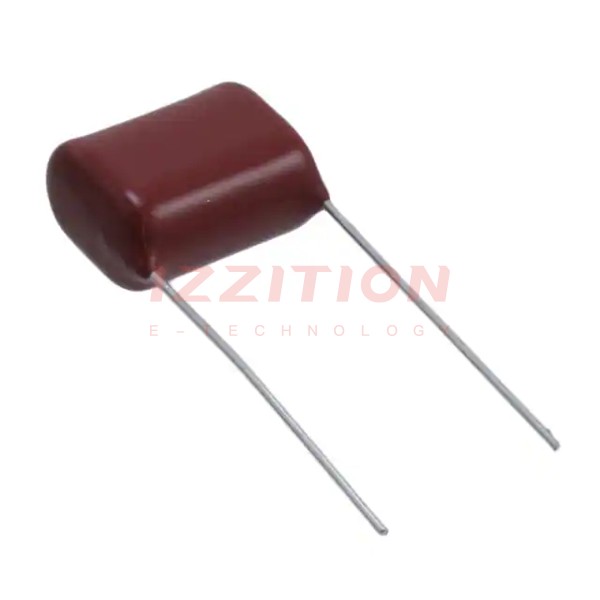

| Part Number | ECW-H6124HC | ECW-H6124HCC | ECW-H6184HC | ECW-H6104HC | ECW-H6114HC |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.12 µF | 0.12 µF | 0.18 µF | 0.1 µF | 0.11 µF |
| Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 223V | 223V | 223V | 223V | 223V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.815" L x 0.370" W (20.70mm x 9.40mm) | 0.815" L x 0.370" W (20.70mm x 9.40mm) | 0.815" L x 0.453" W (20.70mm x 11.50mm) | 0.815" L x 0.339" W (20.70mm x 8.60mm) | 0.815" L x 0.354" W (20.70mm x 9.00mm) |
| Height - Seated (Max) | 0.622" (15.80mm) | 0.622" (15.80mm) | 0.642" (16.30mm) | 0.591" (15.00mm) | 0.606" (15.40mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
