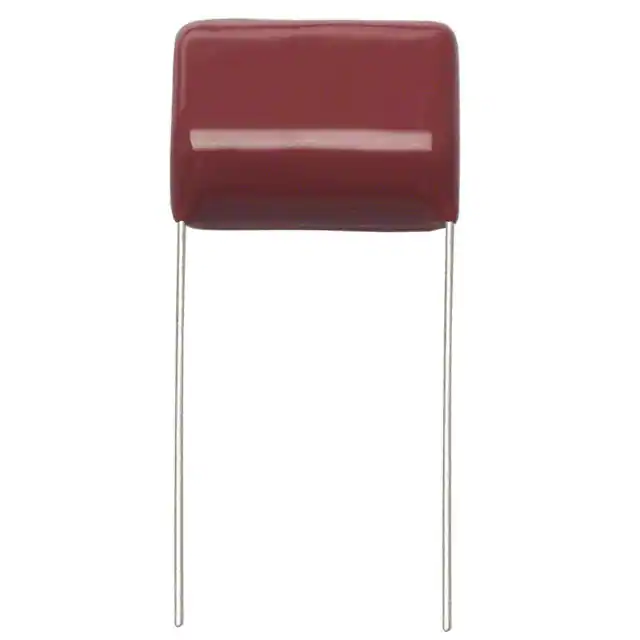

| Part Number | ECW-H16682JV | ECW-H12682JV | ECW-H16182JV |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 6800 pF | 6800 pF | 1800 pF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 424V | 354V | 424V |
| Voltage Rating - DC | 1600V (1.6kV) | 1250V (1.25kV) | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.906" L x 0.276" W (23.00mm x 7.00mm) | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.709" L x 0.276" W (18.00mm x 7.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.591" (15.00mm) | 0.610" (15.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.787" (20.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
