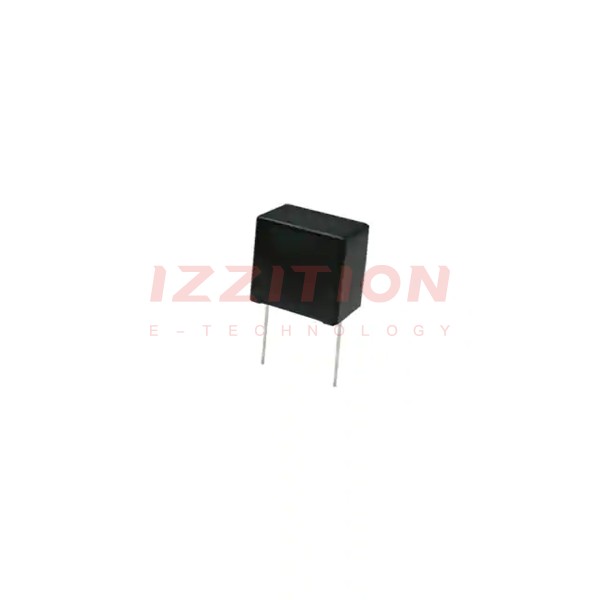

| Part Number | ECW-FG80205J | ECW-FG80605J | ECW-FG80705J | ECW-FG80305J | ECW-FG80405J | ECW-FG80225J | ECW-FG80275J | ECW-FG80505J | ECW-FG80805J | ECW-FG80205JA | ECW-FG70205J |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2 µF | 6 µF | 7 µF | 3 µF | 4 µF | 2.2 µF | 2.7 µF | 5 µF | 8 µF | 2 µF | 2 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 800V | 800V | 800V | 800V | 800V | 800V | 800V | 800V | 800V | 800V | 700V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 1.240" L x 0.472" W (31.50mm x 12.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) | 1.181" (30.00mm) | 1.299" (33.00mm) | 0.984" (25.00mm) | 1.142" (29.00mm) | 0.846" (21.50mm) | 0.984" (25.00mm) | 1.181" (30.00mm) | 1.299" (33.00mm) | 0.846" (21.50mm) | 0.984" (25.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | - | - | - | - | - | - | - | - | - | High Temperature | - |
