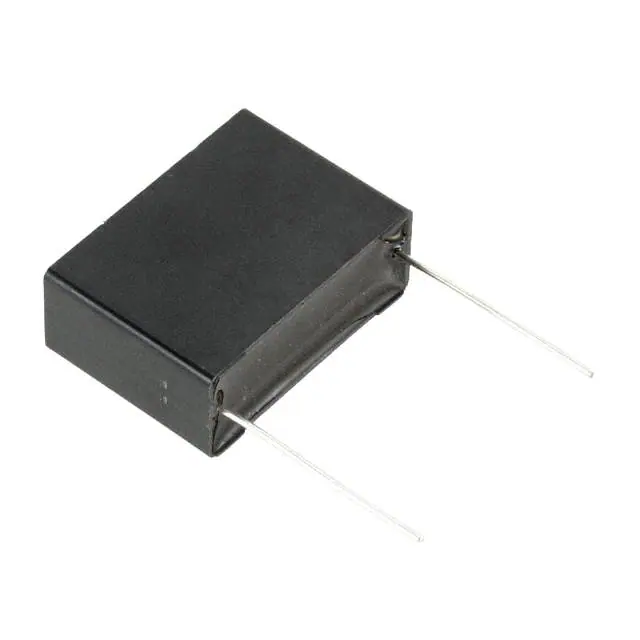

| Part Number | ECW-FG2J475K | ECW-FG2J475KA | ECW-FG2J475J |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF | 4.7 µF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 141V | 141V | 141V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.240" L x 0.689" W (31.50mm x 17.50mm) |
| Height - Seated (Max) | 1.299" (33.00mm) | 1.299" (33.00mm) | 1.299" (33.00mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | High Temperature | High Temperature | High Temperature |
