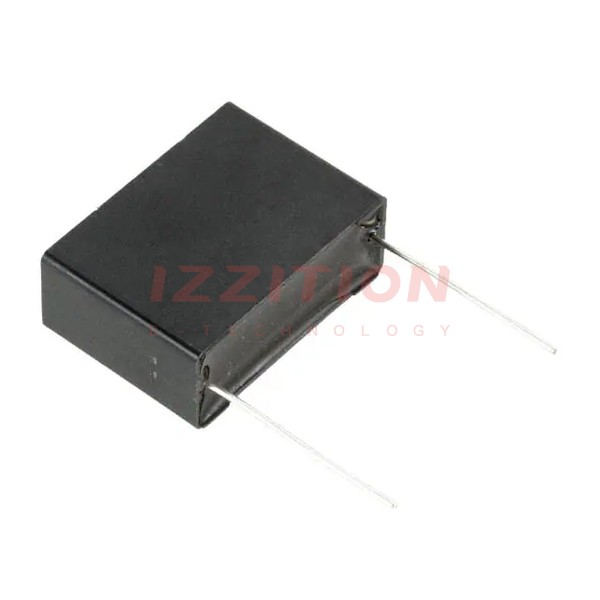

| Part Number | ECW-FG2J225Q1 | ECW-FG2J225QA | ECW-FG2J225P1 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 141V | 141V | 141V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.063" L x 0.610" W (27.00mm x 15.50mm) | 1.063" L x 0.610" W (27.00mm x 15.50mm) | 1.063" L x 0.610" W (27.00mm x 15.50mm) |
| Height - Seated (Max) | 0.965" (24.50mm) | 0.965" (24.50mm) | 0.965" (24.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching | Automotive; High Frequency, Switching |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | High Temperature | High Temperature | High Temperature |
