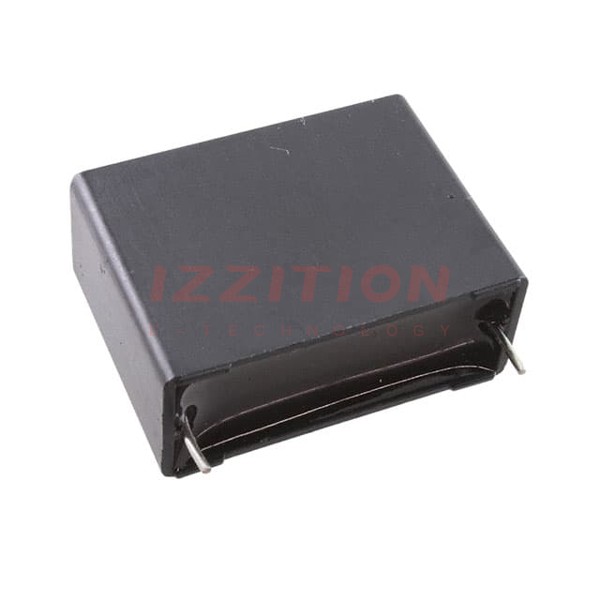

| Part Number | ECW-FE2W335QD | ECW-FE2W334QD | ECW-FE2W335PD | ECW-FE2W335Q5 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 3.3 µF | 0.33 µF | 3.3 µF | 3.3 µF |
| Tolerance | ±10% | ±10% | ±5% | ±10% |
| Voltage Rating - AC | 84V | 84V | 84V | 84V |
| Voltage Rating - DC | 450V | 450V | 450V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 1.220" L x 0.512" W (31.00mm x 13.00mm) |
| Height - Seated (Max) | 0.925" (23.50mm) | 0.433" (11.00mm) | 0.925" (23.50mm) | 0.925" (23.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 0.591" (15.00mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
