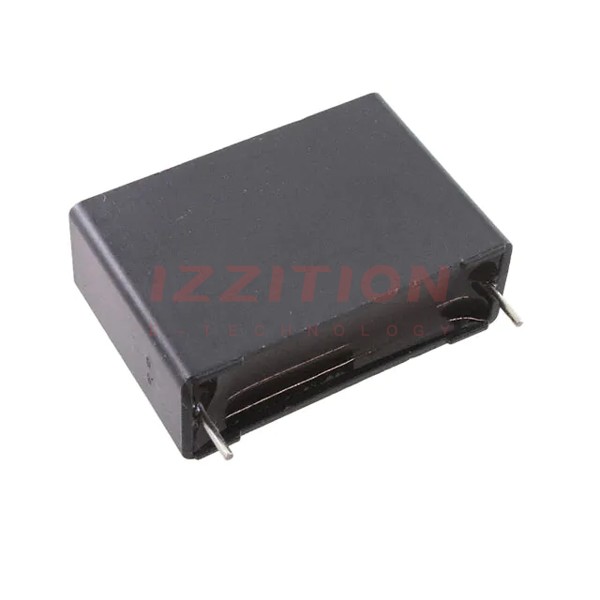

| Part Number | ECW-FE2W225PL | ECW-FE2W225QL | ECW-FE2W225P8 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±5% | ±10% | ±5% |
| Voltage Rating - AC | 84V | 84V | 84V |
| Voltage Rating - DC | 450V | 450V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 1.220" L x 0.433" W (31.00mm x 11.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) | 0.846" (21.50mm) | 0.846" (21.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - |
| Features | - | - | - |
