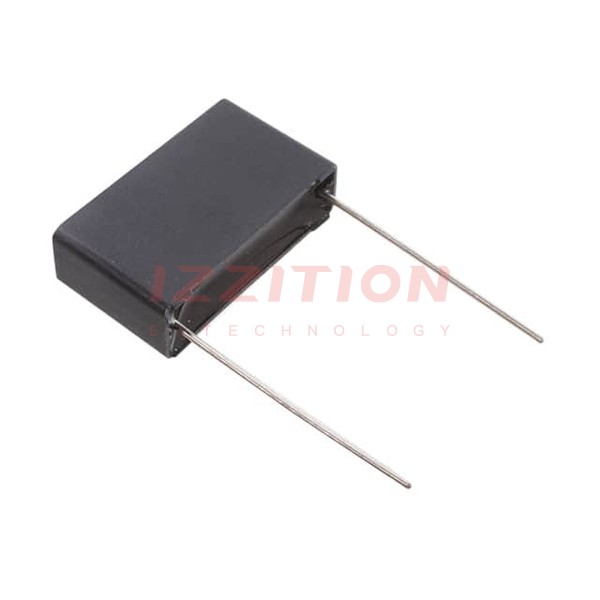

| Part Number | ECW-FE2J474Q5 | ECW-FE2J474QD | ECW-FE2J474P5 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 141V | 141V | 141V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 1.024" L x 0.315" W (26.00mm x 8.00mm) |
| Height - Seated (Max) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.610" (15.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - |
| Features | - | - | - |
