Please send RFQ , we will respond immediately.

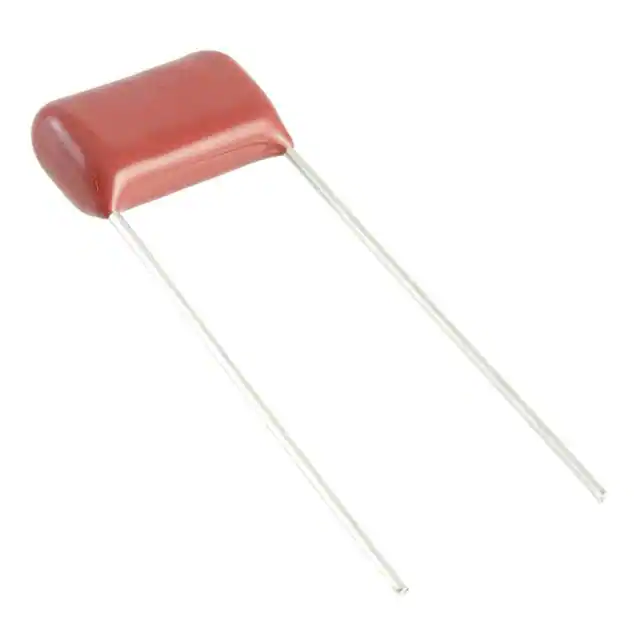

| Part Number | ECW-FD2W684J | ECW-FD2W684K | ECW-FD2W684J4 | ECW-FD2W684JC | ECW-FD2W684JB |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.68 µF | 0.68 µF | 0.68 µF | 0.68 µF | 0.68 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 84V | 84V | 84V | - | - |
| Voltage Rating - DC | 450V | 450V | 450V | 450V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.689" L x 0.264" W (17.50mm x 6.70mm) | 0.689" L x 0.264" W (17.50mm x 6.70mm) | 0.689" L x 0.264" W (17.50mm x 6.70mm) | 0.689" L x 0.264" W (17.50mm x 6.70mm) | 0.689" L x 0.264" W (17.50mm x 6.70mm) |
| Height - Seated (Max) | 0.390" (9.90mm) | 0.390" (9.90mm) | 0.390" (9.90mm) | 0.390" (9.90mm) | 0.587" (14.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.295" (7.50mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
