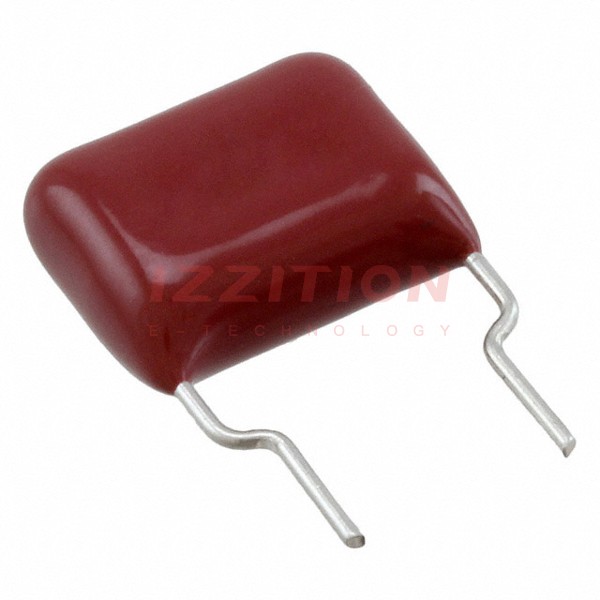

| Part Number | ECW-FD2W334KB | ECW-FD2W334KQ | ECW-FD2W335KB |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 0.33 µF | 0.33 µF | 3.3 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 84V | 84V | - |
| Voltage Rating - DC | 450V | 450V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.496" L x 0.220" W (12.60mm x 5.60mm) | 0.496" L x 0.220" W (12.60mm x 5.60mm) | 0.996" L x 0.386" W (25.30mm x 9.80mm) |
| Height - Seated (Max) | 0.606" (15.40mm) | 0.606" (15.40mm) | 0.772" (19.60mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - |
| Features | - | - | - |
