Please send RFQ , we will respond immediately.

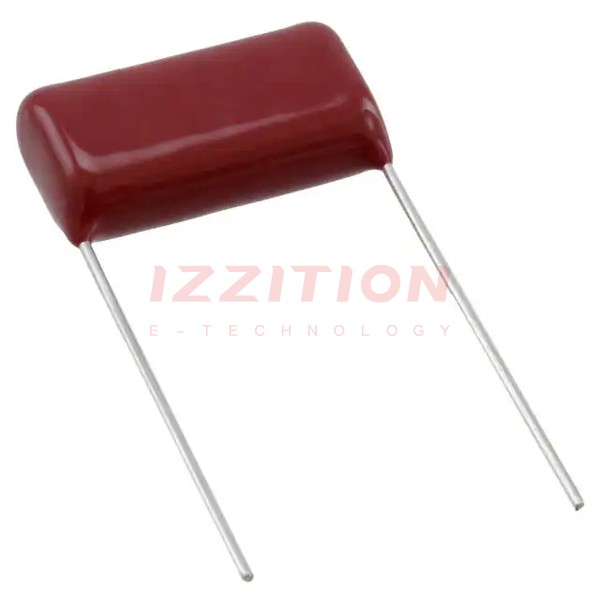

| Part Number | ECW-FD2W275K | ECW-FD2W475K | ECW-FD2W275KC | ECW-FD2W275KB | ECW-FD2J275K | ECW-FD2W225K | ECW-FD2W275J |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2.7 µF | 4.7 µF | 2.7 µF | 2.7 µF | 2.7 µF | 2.2 µF | 2.7 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 84V | - | - | - | 141V | 84V | 84V |
| Voltage Rating - DC | 450V | 450V | 450V | 450V | 630V | 450V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 105°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.996" L x 0.354" W (25.30mm x 9.00mm) | 0.996" L x 0.421" W (25.30mm x 10.70mm) | 0.996" L x 0.354" W (25.30mm x 9.00mm) | 0.996" L x 0.354" W (25.30mm x 9.00mm) | - | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.996" L x 0.354" W (25.30mm x 9.00mm) |
| Height - Seated (Max) | - | 0.646" (16.40mm) | 0.539" (13.70mm) | - | - | 0.563" (14.30mm) | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | - | 0.591" (15.00mm) | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
