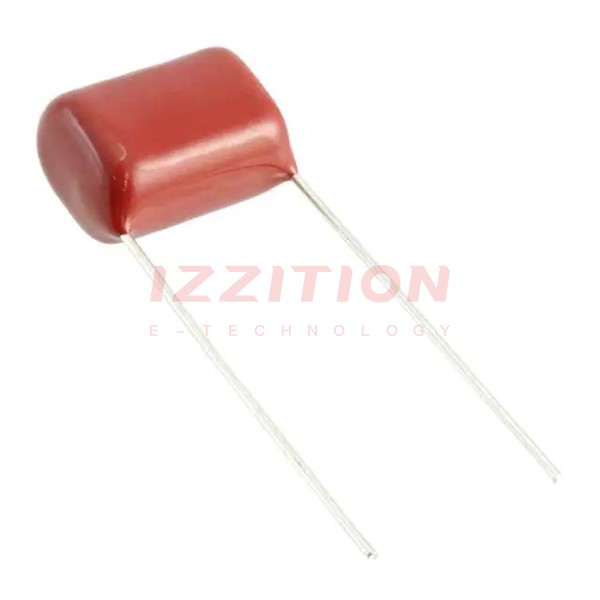

| Part Number | ECW-FD2W225K | ECW-FD2W275K | ECW-FD2W225K4 | ECW-FD2W225KB | ECW-FD2W225KC | ECW-FD2J225K | ECW-FD2W125K | ECW-FD2W225J |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2.2 µF | 2.7 µF | 2.2 µF | 2.2 µF | 2.2 µF | 2.2 µF | 1.2 µF | 2.2 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 84V | 84V | 84V | 84V | - | 141V | - | 84V |
| Voltage Rating - DC | 450V | 450V | 450V | 450V | 450V | 630V | 450V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 105°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.996" L x 0.354" W (25.30mm x 9.00mm) | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.689" L x 0.437" W (17.50mm x 11.10mm) | - | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.689" L x 0.437" W (17.50mm x 11.10mm) |
| Height - Seated (Max) | 0.563" (14.30mm) | - | 0.563" (14.30mm) | 0.760" (19.30mm) | 0.563" (14.30mm) | - | 0.457" (11.60mm) | 0.563" (14.30mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.591" (15.00mm) | - | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
