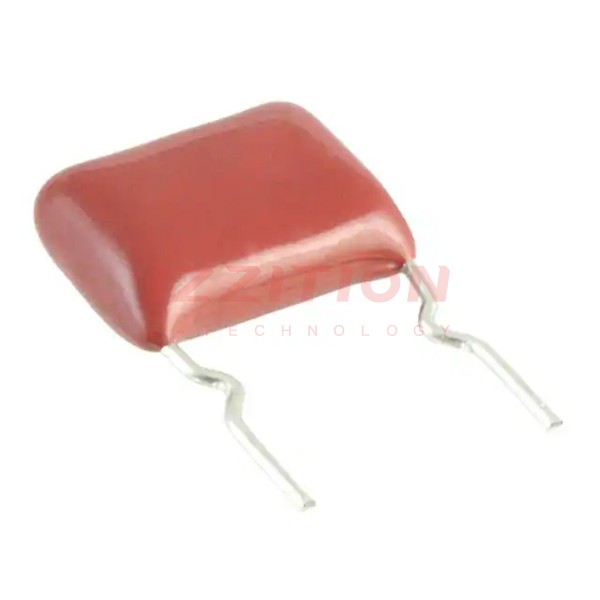

| Part Number | ECW-FD2W224J4 | ECW-FD2W274J4 | ECW-FD2W224K4 | ECW-FD2W224JQ | ECW-FD2W225J4 | ECW-FD2W824J4 | ECW-FD2W224JB | ECW-FD2W124J4 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.27 µF | 0.22 µF | 0.22 µF | 2.2 µF | 0.82 µF | 0.22 µF | 0.12 µF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | 84V | 84V | 84V | 84V | 84V | - | 84V |
| Voltage Rating - DC | 450V | 450V | 450V | 450V | 450V | 450V | 450V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.496" L x 0.197" W (12.60mm x 5.00mm) | 0.496" L x 0.209" W (12.60mm x 5.30mm) | 0.496" L x 0.197" W (12.60mm x 5.00mm) | 0.496" L x 0.197" W (12.60mm x 5.00mm) | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.689" L x 0.283" W (17.50mm x 7.20mm) | 0.496" L x 0.197" W (12.60mm x 5.00mm) | 0.496" L x 0.181" W (12.60mm x 4.60mm) |
| Height - Seated (Max) | 0.575" (14.60mm) | 0.591" (15.00mm) | 0.575" (14.60mm) | 0.575" (14.60mm) | 0.563" (14.30mm) | 0.409" (10.40mm) | 0.575" (14.60mm) | 0.551" (14.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
