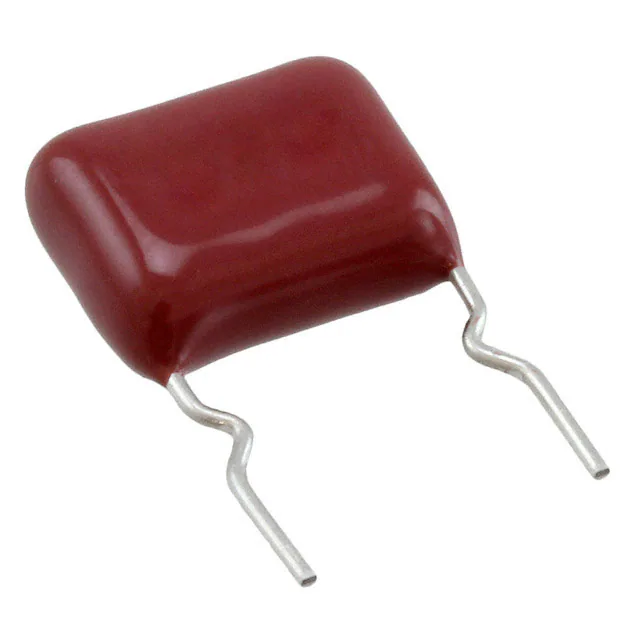

| Part Number | ECW-FD2J563KQ | ECW-FD2J563JQ |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 0.056 µF | 0.056 µF |
| Tolerance | ±10% | ±5% |
| Voltage Rating - AC | 141V | 141V |
| Voltage Rating - DC | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.496" L x 0.185" W (12.60mm x 4.70mm) | 0.496" L x 0.185" W (12.60mm x 4.70mm) |
| Height - Seated (Max) | 0.516" (13.10mm) | 0.516" (13.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - |
| Features | - | - |
