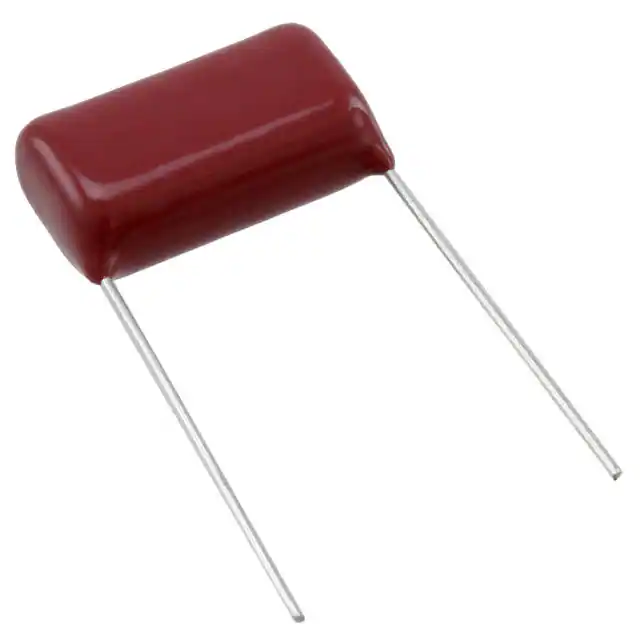

| Part Number | ECW-FD2J395K | ECW-FD2W395K | ECW-FD2J335K | ECW-FD2J394K | ECW-FD2J395J |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 3.9 µF | 3.9 µF | 3.3 µF | 0.39 µF | 3.9 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 141V | - | 141V | 141V | 141V |
| Voltage Rating - DC | 630V | 450V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 110°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.996" L x 0.654" W (25.30mm x 16.60mm) | 0.996" L x 0.421" W (25.30mm x 10.70mm) | 0.996" L x 0.602" W (25.30mm x 15.30mm) | 0.701" L x 0.280" W (17.80mm x 7.10mm) | 0.996" L x 0.654" W (25.30mm x 16.60mm) |
| Height - Seated (Max) | 0.929" (23.60mm) | 0.606" (15.40mm) | 0.874" (22.20mm) | 0.532" (13.50mm) | 0.929" (23.60mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
