Please send RFQ , we will respond immediately.

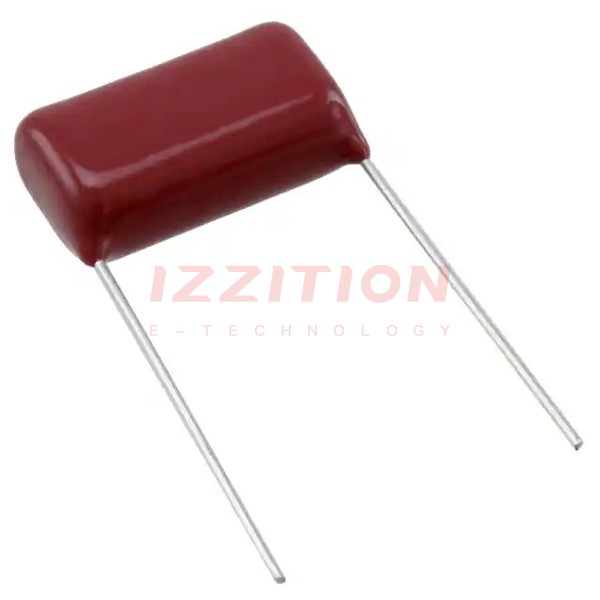

| Part Number | ECW-FD2J275J | ECW-FD2W275J | ECW-FD2J275K | ECW-FD2J475J | ECW-FD2J225J | ECW-FD2J274J |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 2.7 µF | 2.7 µF | 2.7 µF | 4.7 µF | 2.2 µF | 0.27 µF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 141V | 84V | 141V | 141V | 141V | 141V |
| Voltage Rating - DC | 630V | 450V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 110°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | - | 0.996" L x 0.354" W (25.30mm x 9.00mm) | - | 0.996" L x 0.720" W (25.30mm x 18.30mm) | - | 0.701" L x 0.236" W (17.80mm x 6.00mm) |
| Height - Seated (Max) | - | - | - | 1.000" (25.40mm) | - | 0.492" (12.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | 0.886" (22.50mm) | - | 0.886" (22.50mm) | - | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
