Please send RFQ , we will respond immediately.

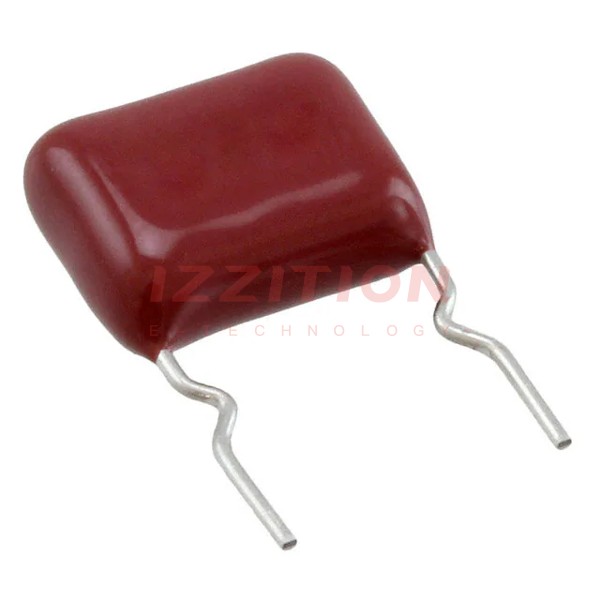

| Part Number | ECW-FD2J124JQ | ECW-FD2W124JQ | ECW-FD2J124KQ | ECW-FD2J184JQ | ECW-FD2J154JQ | ECW-FD2J224JQ | ECW-FA2J124JQ | ECW-FD2J104JQ | ECW-FD2J123JQ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.12 µF | 0.12 µF | 0.12 µF | 0.18 µF | 0.15 µF | 0.22 µF | 0.12 µF | 0.1 µF | 0.012 µF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 141V | 84V | 141V | 141V | 141V | 141V | - | 141V | - |
| Voltage Rating - DC | 630V | 450V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 110°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.496" L x 0.244" W (12.60mm x 6.20mm) | 0.496" L x 0.181" W (12.60mm x 4.60mm) | 0.496" L x 0.244" W (12.60mm x 6.20mm) | 0.496" L x 0.291" W (12.60mm x 7.40mm) | 0.496" L x 0.268" W (12.60mm x 6.80mm) | 0.496" L x 0.319" W (12.60mm x 8.10mm) | 0.717" L x 0.217" W (18.20mm x 5.50mm) | 0.496" L x 0.228" W (12.60mm x 5.80mm) | 0.496" L x 0.205" W (12.60mm x 5.20mm) |
| Height - Seated (Max) | 0.575" (14.60mm) | 0.551" (14.00mm) | 0.575" (14.60mm) | 0.618" (15.70mm) | 0.598" (15.20mm) | 0.646" (16.40mm) | 0.622" (15.80mm) | 0.559" (14.20mm) | 0.323" (8.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
