Please send RFQ , we will respond immediately.

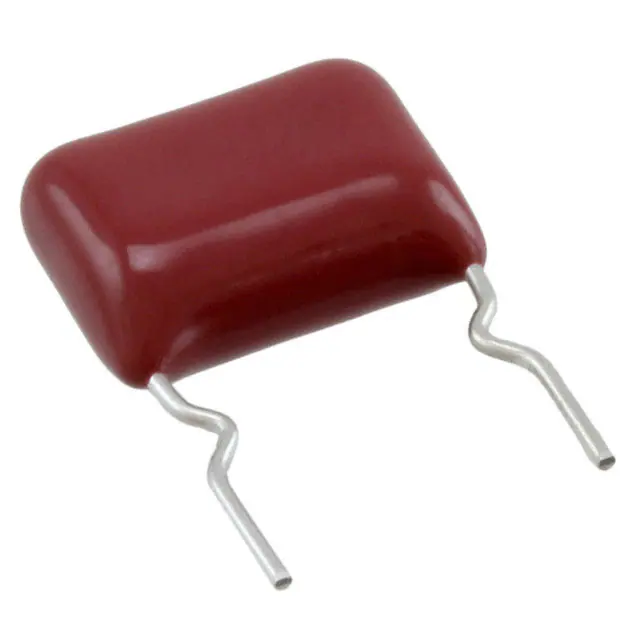

| Part Number | ECW-FD2J123JQ | ECW-FD2J223JQ | ECW-FD2J823JQ | ECW-FD2J153JQ | ECW-FD2J183JQ | ECW-FD2J123KQ | ECW-FD2J124JQ | ECW-FD2J103JQ | ECW-FD2J123JB |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.012 µF | 0.022 µF | 0.082 µF | 0.015 µF | 0.018 µF | 0.012 µF | 0.12 µF | 10000 pF | 0.012 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | 141V | - | - | - | 141V | - | - |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.496" L x 0.205" W (12.60mm x 5.20mm) | 0.496" L x 0.252" W (12.60mm x 6.40mm) | 0.496" L x 0.213" W (12.60mm x 5.40mm) | 0.496" L x 0.220" W (12.60mm x 5.60mm) | 0.496" L x 0.232" W (12.60mm x 5.90mm) | 0.496" L x 0.205" W (12.60mm x 5.20mm) | 0.496" L x 0.244" W (12.60mm x 6.20mm) | 0.496" L x 0.193" W (12.60mm x 4.90mm) | 0.496" L x 0.205" W (12.60mm x 5.20mm) |
| Height - Seated (Max) | 0.323" (8.20mm) | 0.370" (9.40mm) | - | 0.339" (8.60mm) | 0.351" (9.00mm) | 0.323" (8.20mm) | 0.575" (14.60mm) | 0.315" (8.00mm) | 0.323" (8.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
