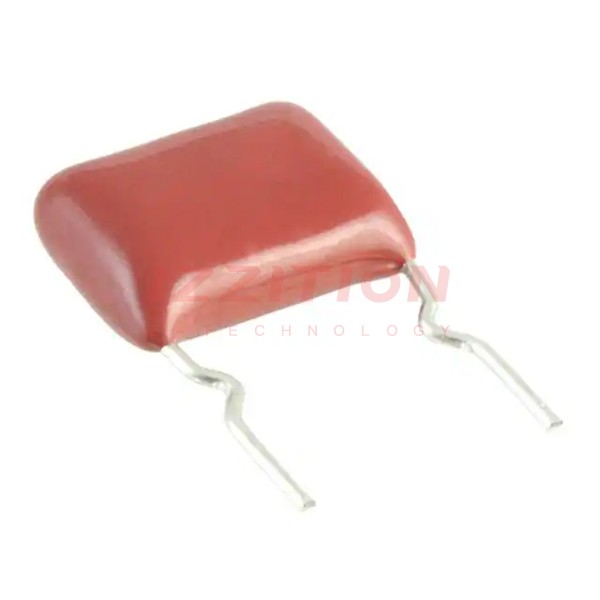

| Part Number | ECW-FD2J104KQ | ECW-FD2W104KQ | ECW-FD2J124KQ | ECW-FD2J184KQ | ECW-FD2J154KQ | ECW-FD2J103KQ | ECW-FD2J104JQ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.12 µF | 0.18 µF | 0.15 µF | 10000 pF | 0.1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 141V | 84V | 141V | 141V | 141V | - | 141V |
| Voltage Rating - DC | 630V | 450V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 110°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.496" L x 0.228" W (12.60mm x 5.80mm) | 0.496" L x 0.177" W (12.60mm x 4.50mm) | 0.496" L x 0.244" W (12.60mm x 6.20mm) | 0.496" L x 0.291" W (12.60mm x 7.40mm) | 0.496" L x 0.268" W (12.60mm x 6.80mm) | 0.496" L x 0.193" W (12.60mm x 4.90mm) | 0.496" L x 0.228" W (12.60mm x 5.80mm) |
| Height - Seated (Max) | 0.559" (14.20mm) | 0.547" (13.90mm) | 0.575" (14.60mm) | 0.618" (15.70mm) | 0.598" (15.20mm) | 0.315" (8.00mm) | 0.559" (14.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
