Please send RFQ , we will respond immediately.

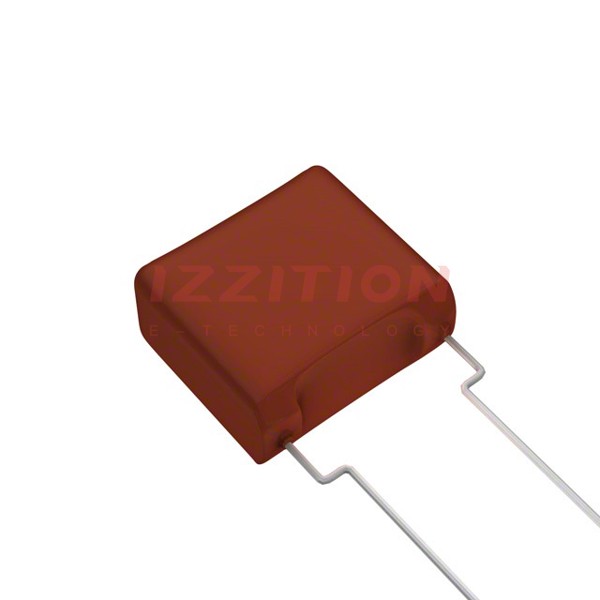

| Part Number | ECW-FA2J474JB | ECW-FA2J474JQ | ECW-FA2J274JB | ECW-FA2J474J | ECW-FA2J474J4 | ECW-FA2J474J5 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.27 µF | 0.47 µF | 0.47 µF | 0.47 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | 141V | - | - |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.717" L x 0.394" W (18.20mm x 10.00mm) | 0.717" L x 0.394" W (18.20mm x 10.00mm) | 0.717" L x 0.307" W (18.20mm x 7.80mm) | 0.717" L x 0.394" W (18.20mm x 10.00mm) | 0.717" L x 0.394" W (18.20mm x 10.00mm) | 0.717" L x 0.394" W (18.20mm x 10.00mm) |
| Height - Seated (Max) | 0.791" (20.10mm) | 0.791" (20.10mm) | 0.705" (17.90mm) | 0.594" (15.10mm) | 0.594" (15.10mm) | 0.594" (15.10mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
