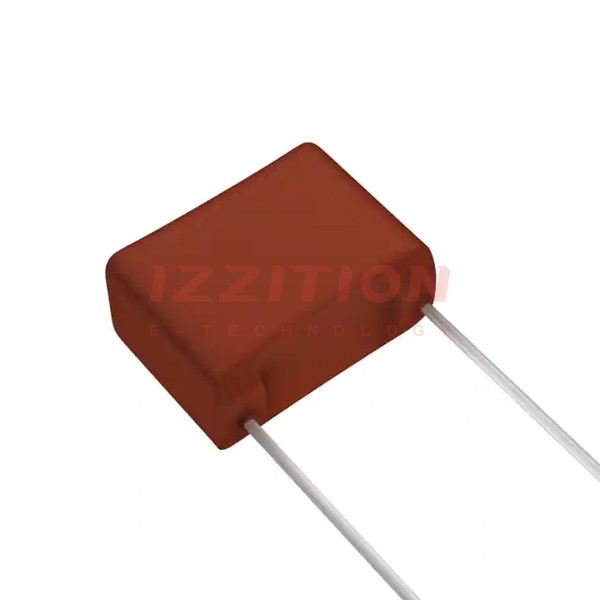

| Part Number | ECW-FA2J394J | ECW-FD2J394J | ECW-FA2J394JQ | ECW-FA2J394JB | ECW-FA2J394J4 | ECW-FA2J394J5 | ECW-FA2J334J |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.39 µF | 0.39 µF | 0.39 µF | 0.39 µF | 0.39 µF | 0.39 µF | 0.33 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 141V | 141V | - | - | - | - | 141V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.717" L x 0.362" W (18.20mm x 9.20mm) | 0.701" L x 0.280" W (17.80mm x 7.10mm) | 0.717" L x 0.362" W (18.20mm x 9.20mm) | 0.717" L x 0.362" W (18.20mm x 9.20mm) | 0.717" L x 0.362" W (18.20mm x 9.20mm) | 0.717" L x 0.362" W (18.20mm x 9.20mm) | 0.717" L x 0.335" W (18.20mm x 8.50mm) |
| Height - Seated (Max) | 0.563" (14.30mm) | 0.532" (13.50mm) | 0.760" (19.30mm) | 0.760" (19.30mm) | 0.563" (14.30mm) | 0.563" (14.30mm) | 0.535" (13.60mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
