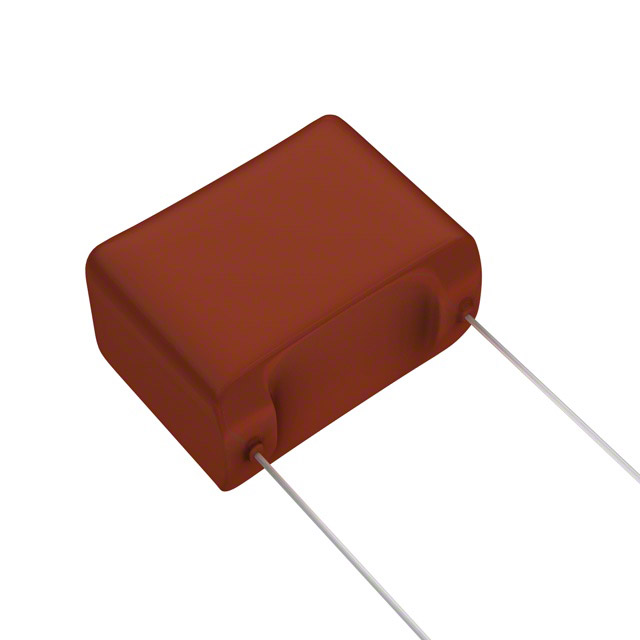

| Part Number | ECW-FA2J185J | ECW-FD2J185J | ECW-FA2J185JQ | ECW-FA2J185JB | ECW-FA2J105J | ECW-FA2J125J | ECW-FA2J155J | ECW-FA2J184J |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1.8 µF | 1.8 µF | 1.8 µF | 1.8 µF | 1 µF | 1.2 µF | 1.5 µF | 0.18 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 141V | 141V | - | - | 141V | 141V | 141V | 141V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.024" L x 0.583" W (26.00mm x 14.80mm) | 0.996" L x 0.441" W (25.30mm x 11.20mm) | 1.024" L x 0.583" W (26.00mm x 14.80mm) | 1.024" L x 0.583" W (26.00mm x 14.80mm) | 1.024" L x 0.437" W (26.00mm x 11.10mm) | 1.024" L x 0.476" W (26.00mm x 12.10mm) | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 0.717" L x 0.256" W (18.20mm x 6.50mm) |
| Height - Seated (Max) | 0.780" (19.80mm) | 0.709" (18.00mm) | 1.055" (26.80mm) | 0.976" (24.80mm) | 0.638" (16.20mm) | 0.677" (17.20mm) | 0.732" (18.60mm) | 0.461" (11.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
