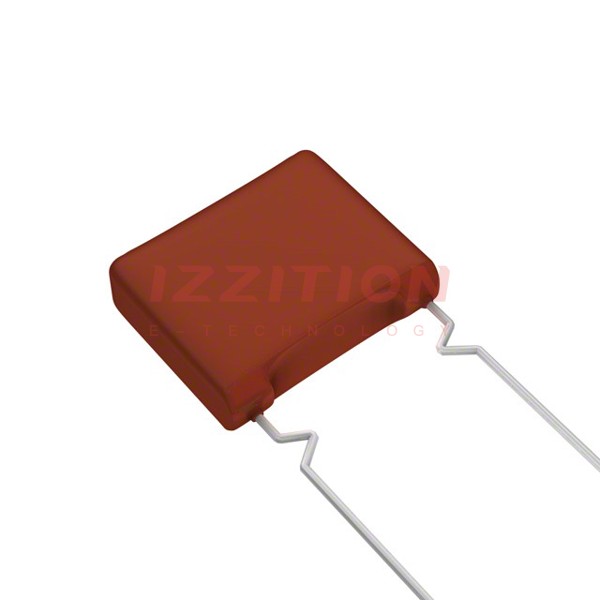

| Part Number | ECW-FA2J184JQ | ECW-FD2J184JQ | ECW-FA2J684JQ | ECW-FA2J185JQ | ECW-FA2J104JQ | ECW-FA2J124JQ | ECW-FA2J154JQ | ECW-FA2J184J | ECW-FA2J184J4 | ECW-FA2J184J5 | ECW-FA2J184JB |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.18 µF | 0.18 µF | 0.68 µF | 1.8 µF | 0.1 µF | 0.12 µF | 0.15 µF | 0.18 µF | 0.18 µF | 0.18 µF | 0.18 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | 141V | - | - | - | - | - | 141V | - | - | - |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.717" L x 0.256" W (18.20mm x 6.50mm) | 0.496" L x 0.291" W (12.60mm x 7.40mm) | 0.717" L x 0.472" W (18.20mm x 12.00mm) | 1.024" L x 0.583" W (26.00mm x 14.80mm) | 0.709" L x 0.205" W (18.00mm x 5.20mm) | 0.717" L x 0.217" W (18.20mm x 5.50mm) | 0.717" L x 0.236" W (18.20mm x 6.00mm) | 0.717" L x 0.256" W (18.20mm x 6.50mm) | 0.717" L x 0.256" W (18.20mm x 6.50mm) | 0.717" L x 0.256" W (18.20mm x 6.50mm) | 0.717" L x 0.256" W (18.20mm x 6.50mm) |
| Height - Seated (Max) | 0.657" (16.70mm) | 0.618" (15.70mm) | 0.870" (22.10mm) | 1.055" (26.80mm) | 0.606" (15.40mm) | 0.622" (15.80mm) | 0.638" (16.20mm) | 0.461" (11.70mm) | 0.461" (11.70mm) | 0.461" (11.70mm) | 0.657" (16.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) |
| Applications | High Frequency, Switching | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - |
